Choosing between a wall mount hose reel and a ground-mounted retractable hose reel comes down to yard layout, faucet location, and how you use outdoor water. Both styles fix the same problem — tangled, kinked hoses draped across the lawn.
A retractable garden hose reel removes the need to hand-coil the hose, although the hose should still be guided during retraction. This guide compares wall-mounted and ground-mounted designs side by side, covering installation, rotation, reach, and durability so you can pick the right setup for your property.
How Each Mounting Style Works
The core difference is position. A wall mount hose reel bolts to a vertical surface near your spigot. A ground-mounted retractable hose reel sits upright on its own base. That single variable shapes every downstream trade-off in rotation, coverage, and setup effort.
Mounting Method
Wall-mounted reels fasten to exterior walls, fences, or 4×4 posts with lag bolts or expansion anchors. The bracket needs a structurally sound surface — vinyl siding alone cannot support a water-filled reel. Ground-mounted units secure to soil with heavy-duty ground spikes or to concrete with plastic anchors.
Rotation Range
Wall-mounted brackets swivel up to 180 degrees, covering a semicircle from the mount point. The Giraffe Tools ground-mounted model rotates a full 360 degrees on its base. That wider arc matters when watering wraps around corners or needs to reach multiple sides of a property.
Retraction and Locking
Both formats use spring-driven auto-rewind. Pull the hose to any length, and a lock-at-any-length mechanism holds it in place. A gentle tug releases the lock and triggers retraction. The Giraffe Tools Retractable Garden Hose Reel adds an adaptive layering system that guides the hose evenly onto the drum.
Installation Effort
Wall-mount installation requires drilling and fasteners suited to the supporting wall material. Installation time varies with the mounting surface and available tools. On lawns, secure the reel with the four included heavy-duty ground spikes using a hammer. Concrete installation requires drilled holes, plastic anchors, and screws.
Retractable Hose Reel Specs at a Glance
The table below draws on current Giraffe Tools product data to show how each retractable hose reel handles rotation, reach, pressure, and installation. Note that the example listed weights refer to different hose lengths and are not a direct like-for-like comparison.
| Feature | Wall-Mounted Hose Reel | Ground-Mounted Retractable Hose Reel |
|---|---|---|
| Mounting | Structurally supported wall, sturdy fence post, or post; drilling and secure fastening required | Lawn installation with four heavy-duty spikes and a hammer, or drilled anchors and screws on concrete |
| Swivel Range | Up to 180° | Up to 360° |
| Current Hose Options | 5/8 in × 65, 90, or 115 ft; 1/2 in × 100, 130, or 155 ft | 1/2 in × 82, 100, or 130 ft; 5/8 in × 92 ft |
| Maximum Working Pressure | 0.8 MPa, approximately 116 PSI | 0.8 MPa, approximately 116 PSI |
| Example Listed Weight | 24 lb for the 1/2 in × 100 ft model | 22.3 lb for the 1/2 in × 82 ft model |
| Best For | Saving floor space, installation near a suitable structural surface, watering mainly from one side of a property | Central yard placement, multi-directional watering, lawns without a nearby suitable wall |
Choosing a Reel by Yard Layout
Not every yard calls for the same mounting style. Lot size, spigot position, and whether you rent or own the property all steer the decision. Here is how each retractable garden hose reel format maps to the most common property types and watering routines.
Compact or Single-Side Properties
When your watering zone sits within 100 feet of an exterior wall, a wall mount hose reel keeps the hose tucked away at waist height. It clears ground space on patios and narrow walkways. A 180-degree swivel bracket covers a typical suburban front or backyard without repositioning.
Large Open Lots

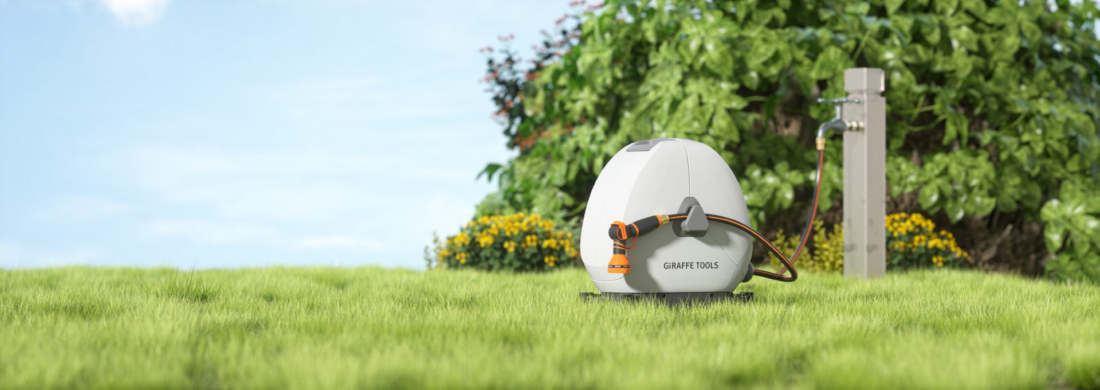

A centrally positioned Ground-Mounted Retractable Hose Reel provides more balanced multi-directional coverage than a reel fixed to an exterior wall. Its advantage comes from placement and 360-degree rotation, not uniquely longer hoses. Renters benefit too, since the ground-spike setup avoids permanent wall damage.
Multi-Zone Properties
Some homeowners pair both types — one wall mount hose reel near the back door for patio washing and a ground-mounted retractable hose reel in the front yard. That combination eliminates the need to drag a single hose across the entire lot and saves time on large or L-shaped properties.
Performance and Durability
Hose diameter, working pressure, and build quality determine how well a retractable garden hose reel performs season after season. The data below comes from published Giraffe Tools specifications. These numbers help separate engineering facts from marketing estimates so you can evaluate each format on its merits.
Pressure and Flow
Both the wall-mounted and ground-mounted retractable hose reel models share a 0.8 MPa rating. That number represents the maximum permitted working pressure, not the pressure generated. Actual nozzle pressure remains limited by the home water supply and pressure losses through the hose and fittings.
Actual flow at the nozzle depends on several interconnected variables. It relies on the household supply pressure, the hose inside diameter and total length, nozzle and fitting restrictions, elevation changes, and any kinks or blockages within the system.
Hose Material and Build Quality
Both selected models use PP reel housings and PVC hoses. Their housings or frames are listed as UV-resistant, while the ground-mounted retractable hose reel includes a hose described as flexible, abrasion-resistant, and suitable for outdoor use. Each unit includes a nine-pattern spray nozzle.
A half-inch hose generally uses less material and holds less water than a comparable five-eighths inch hose, although actual retraction effort depends on the reel and spring design. The retractable garden hose reel adds reinforced joints and passes three thousand pull tests for wind and pull resistance.
Seasonal Care and Setup Tips
Before the first hard frost, disconnect the inlet hose, open the nozzle, and drain the retractable garden hose reel completely. Store the unit in a garage or frost-free area. Water left inside can freeze and expand, potentially damaging the hose, connectors, seals, and other water-carrying components.
Routine Inspection
Follow these steps at the start and end of each watering season:
- Inspect hose fittings and connections for leaks or visible wear.
- Test the lock-at-any-length mechanism at several pull distances.
- Confirm the hose rewinds smoothly without bunching on the drum.
The ground-mounted retractable hose reel features an openable side cover intended for limited inspection and manufacturer-approved maintenance. Do not disassemble the spring housing because the internal spring is under high tension. For wall mount hose reel users, check bracket fasteners annually, as repeated swivel motion can loosen bolts over time.
Quick Decision Checklist
Answer three questions to narrow the choice between a wall-mounted and ground-mounted retractable garden hose reel. Each targets a practical constraint that separates these two formats, and the answers point directly to the right mounting style.
- Do you have a solid wall near your faucet? A structurally sound wall or post within reach of your spigot supports a wall mount hose reel. No suitable wall means a ground-mounted unit avoids the structural requirement entirely.
- Do you need 360-degree reach? A ground-mounted reel with 130 feet of hose and full rotation covers a wide circular area. A wall-mounted unit covers a semicircle from its fixed point.
- Are you renting? Ground-mounted reels installed with heavy-duty ground spikes leave no wall holes. Wall-mounted reels require drilling and may need landlord approval before installation.
Why Giraffe Tools Fits Both Setups
Giraffe Tools builds both wall-mounted and ground-mounted retractable reels on the same engineering foundation. Both formats share core conveniences such as automatic retraction, length locking, enclosed storage, and outdoor-oriented construction across the entire lineup of residential watering tools.
The better choice ultimately depends on whether you prioritize elevated, space-saving storage on an exterior wall or prefer flexible, multi-directional placement in the center of your lawn. Pick the mounting style that suits your specific yard layout.
